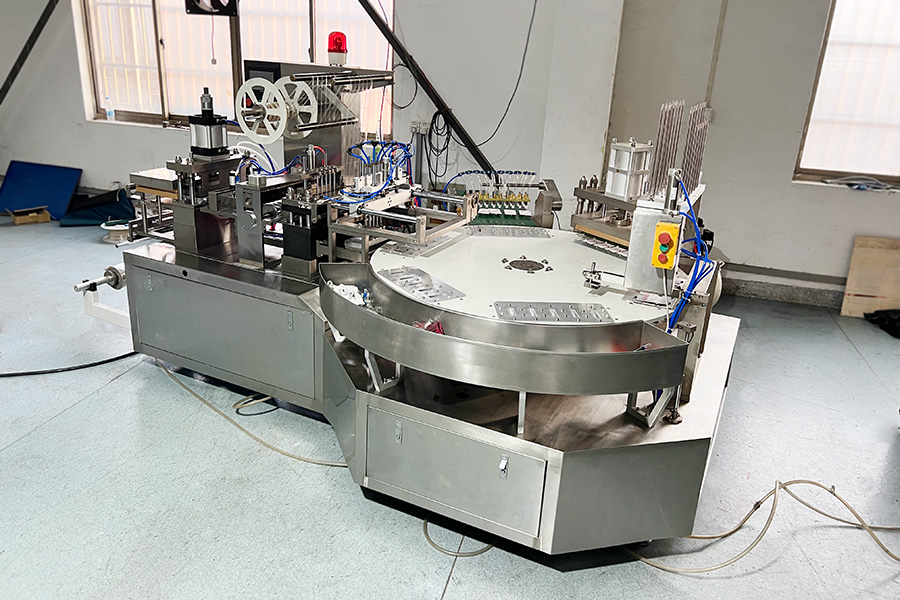

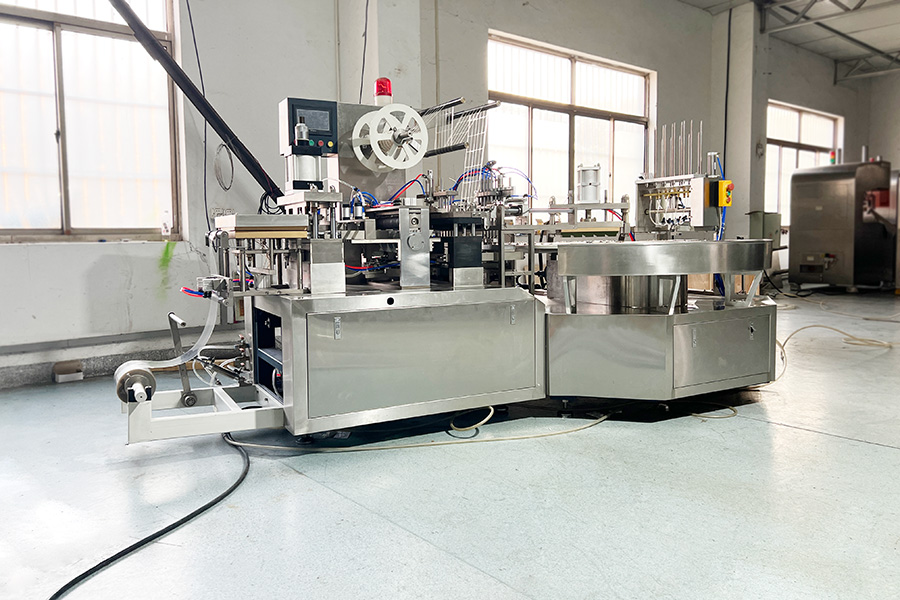

.jpg "fully automatic blister pacakging machine")

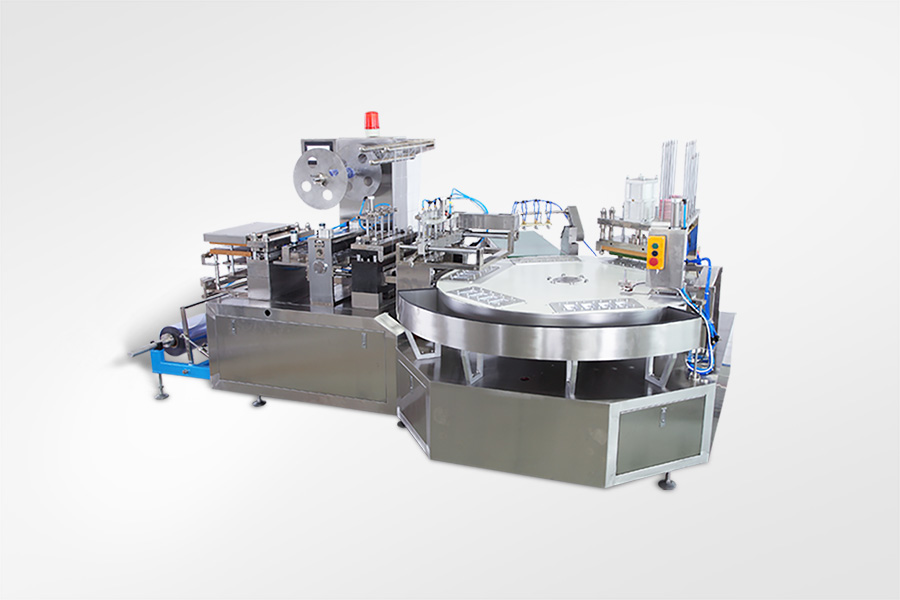

.jpg "blister forming and pacakging machine")
.jpg "customized blister packaging machine")

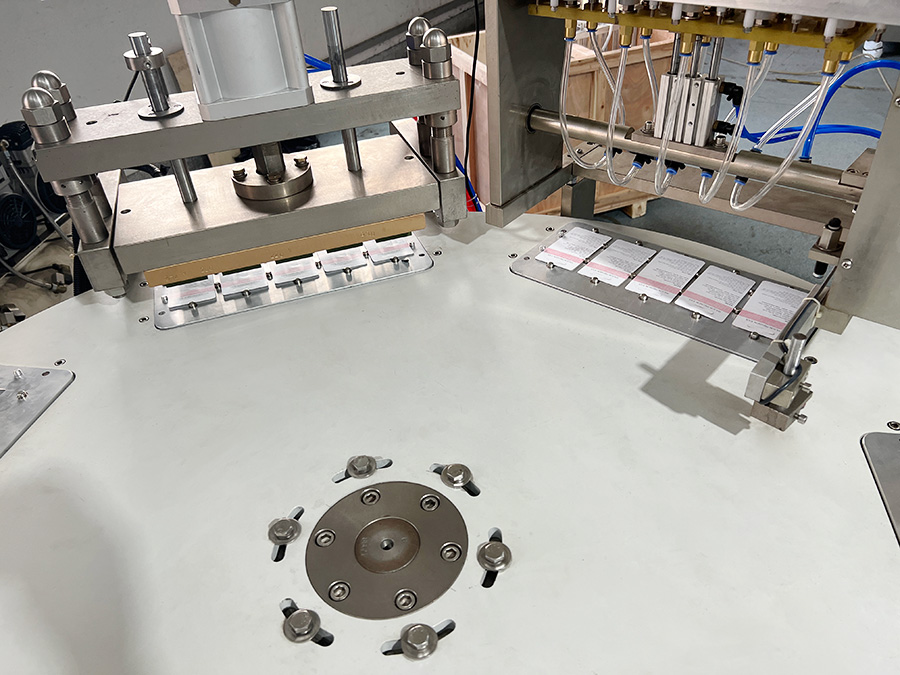

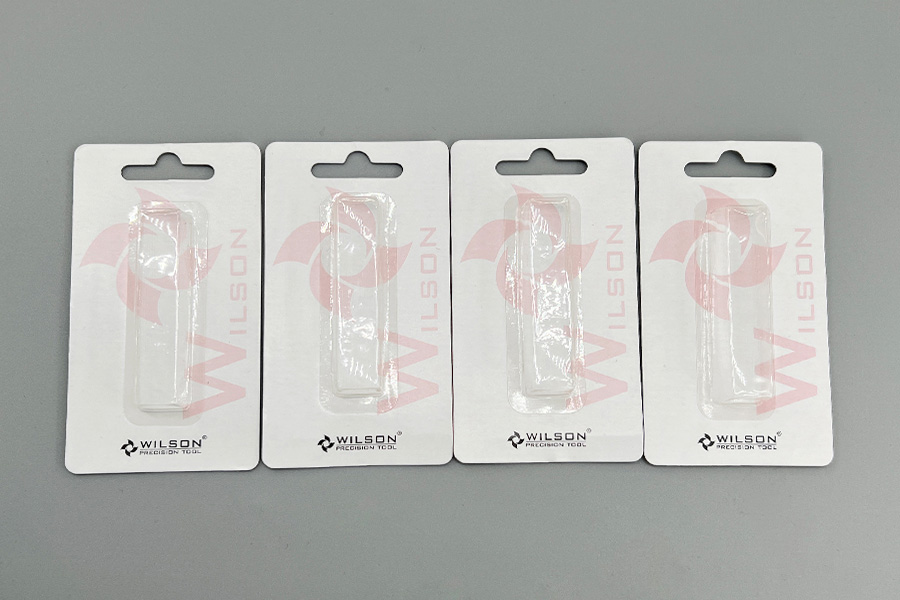

.jpg "single blister and card packaging machine")
.jpg "customized type")
.jpg "PLC control, high precision")

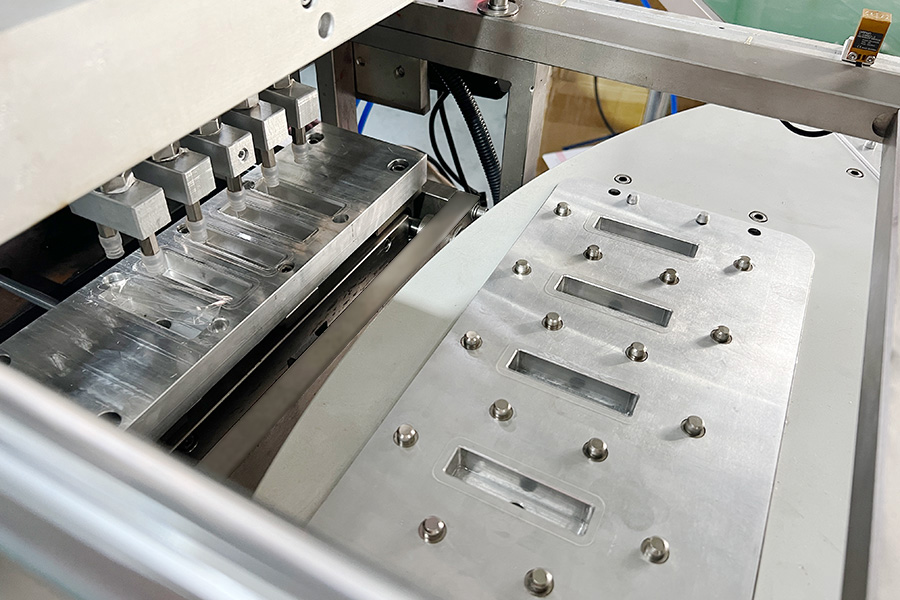

.jpg "automatic forming")

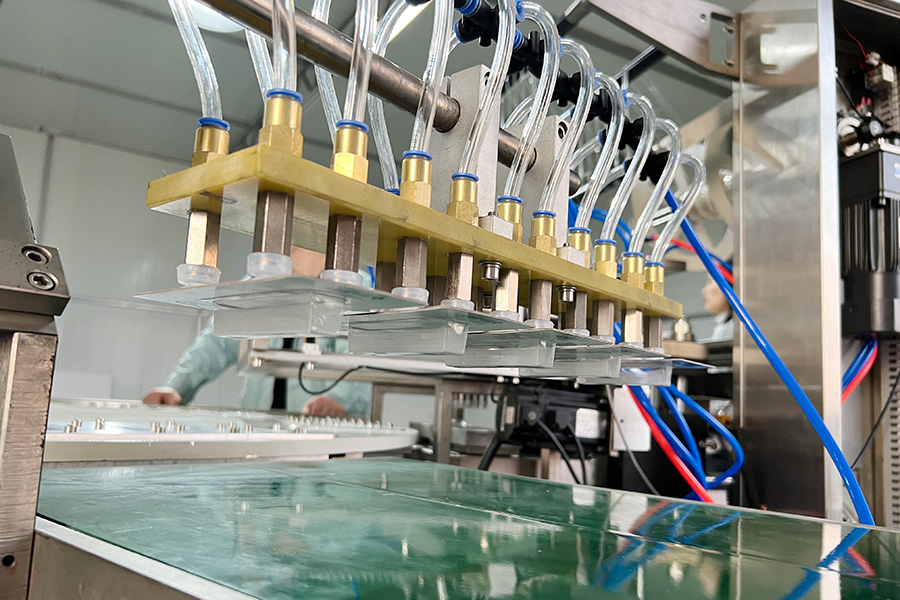

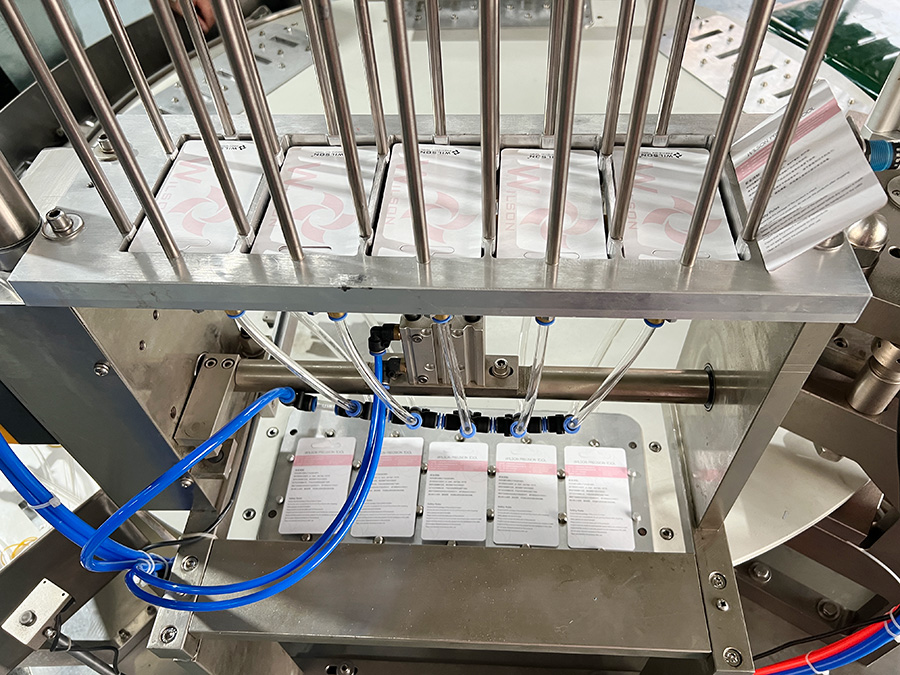

.jpg "automatic packaging")
.jpg "automatic discharging")

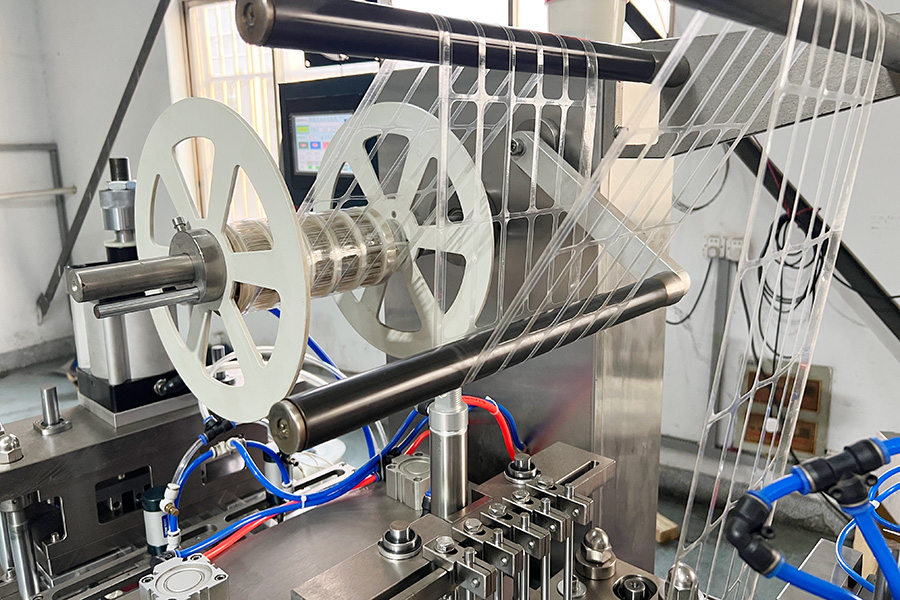

.jpg "automatic transfering")
|
Model |
PXBP-I03B |
|
Working Process |

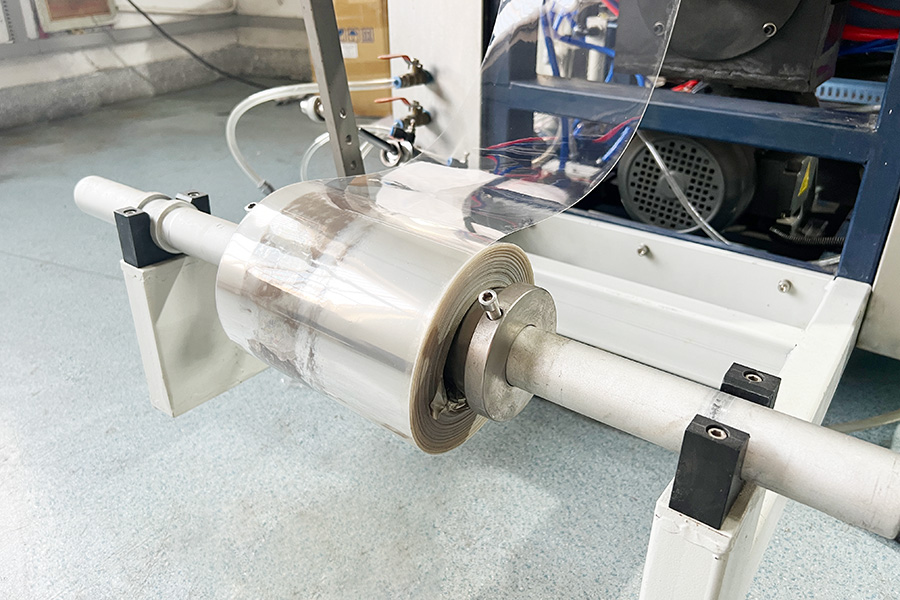

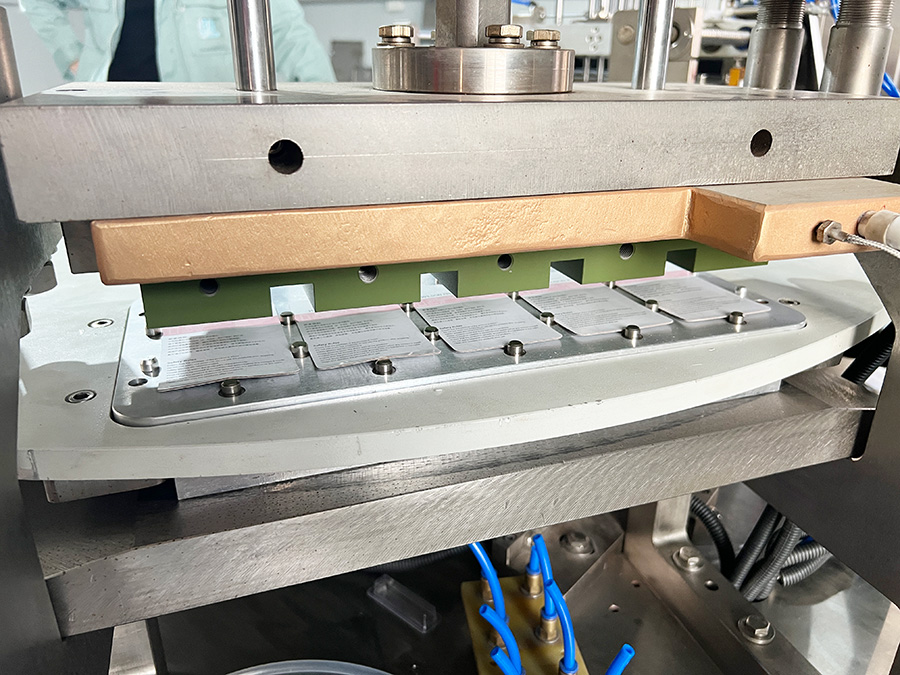

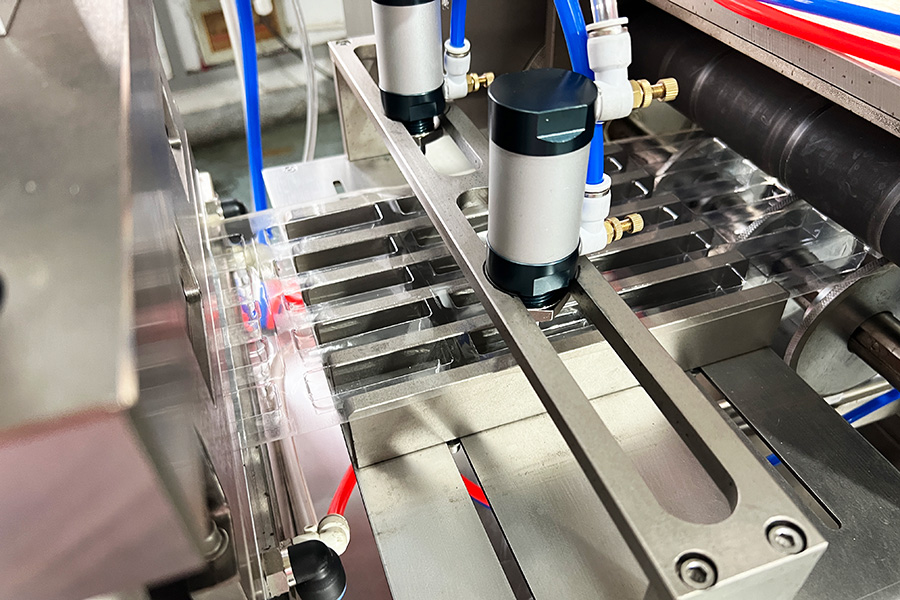

PVC sheet loading--PVC heating--blister forming--servo driven--blister cutting--wasted PVC collecting--blister delivering--blister releasing--paper card unload--welding--finished product out |
|
Packaging Material |
Hard PVC ( 0.15-0.5) *370mm |
|
Air Supply |
0.5-0.8MPA more than 0.5cubic meter/min |
|
Output Power |
10KW |
|
Power Supply |
380V,50Hz,3P (domestic),Customized ( foreign ) |
|
Pressure Mode |
Pneumatic ≤0.6MPA (adjustable) |
|
Mould Cooling Water |
Natural water or cycled water 50L/hr |
|
Production Capacity |
12-25 punches / min |
|
Stroke Range |
50-160mm |
|
Max. Paper Card Area |
370*200mm |
|
Max. Forming Area and Depth |
350*160*35mm |
|
Overall Dimension ( L W H ) |
3300*2200*1700mm |
|
Weight |
2000KG |
