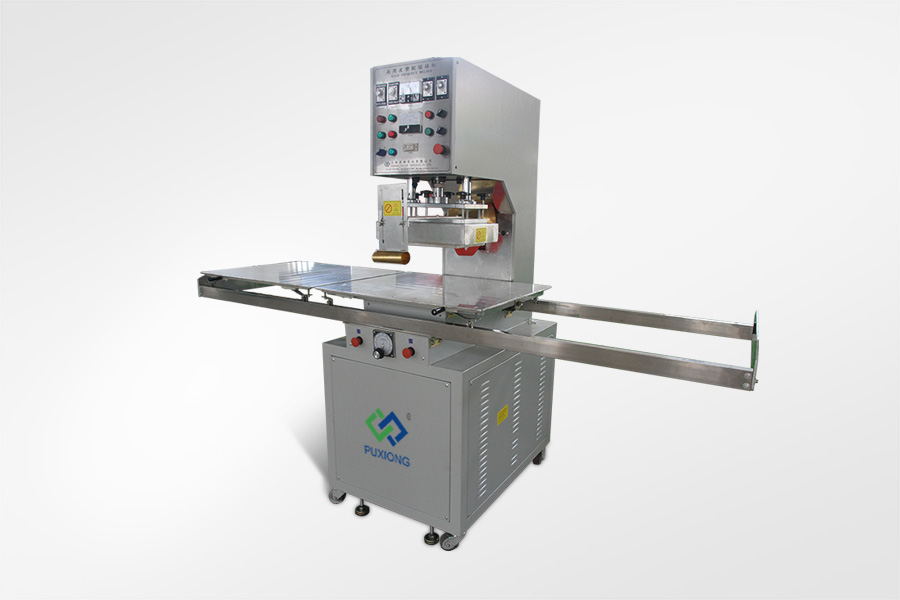

.jpg "manual plastic sealing machine for blister packaging")

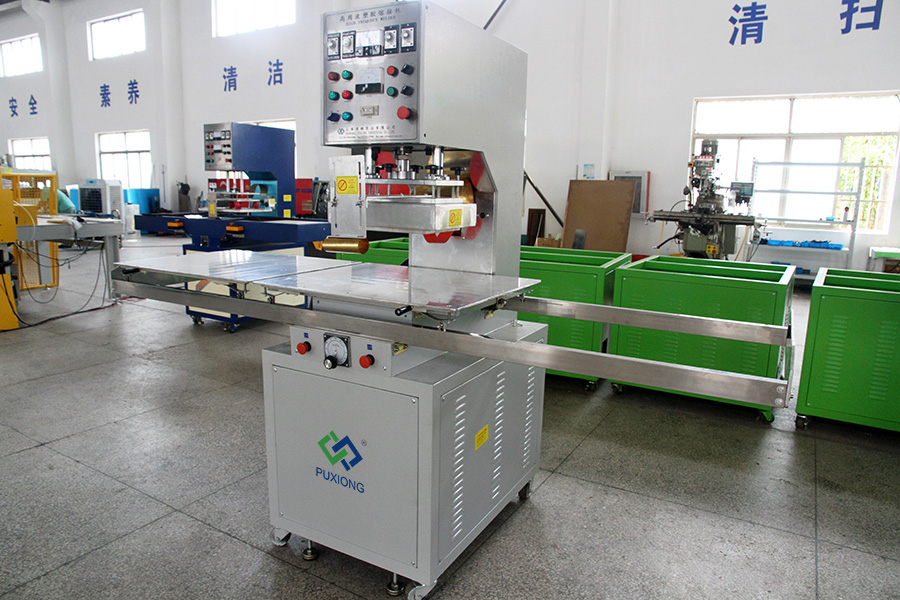

.jpg "high frequency pvc packaging machine")
.jpg "sliding table type blister card packing machine")
.jpg "blister card packaging machine")

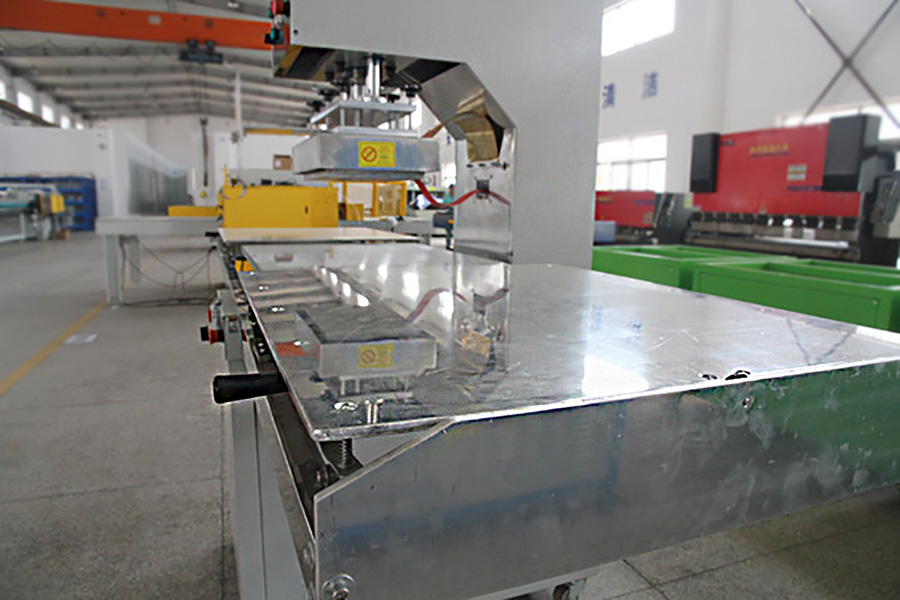

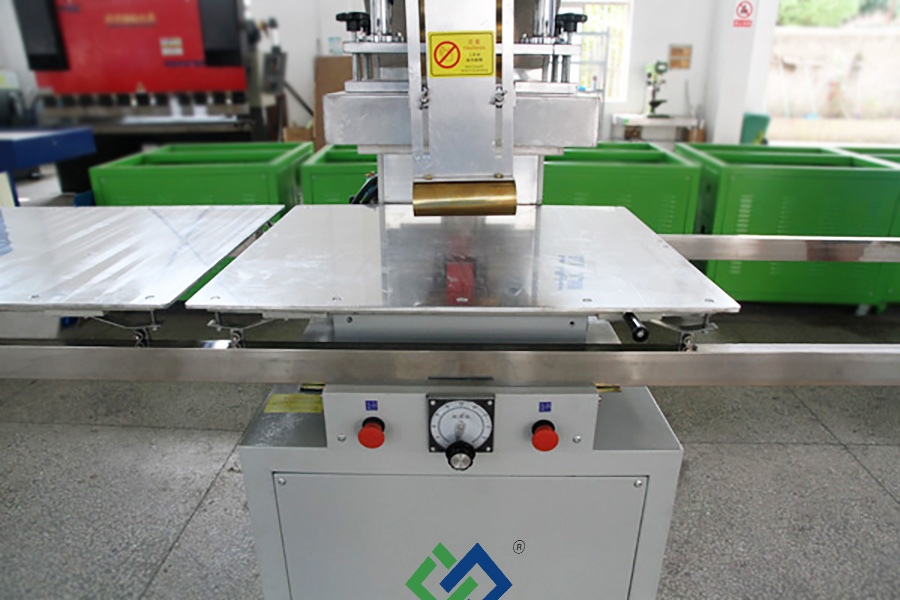

.jpg "double sliding table, work alternatively")

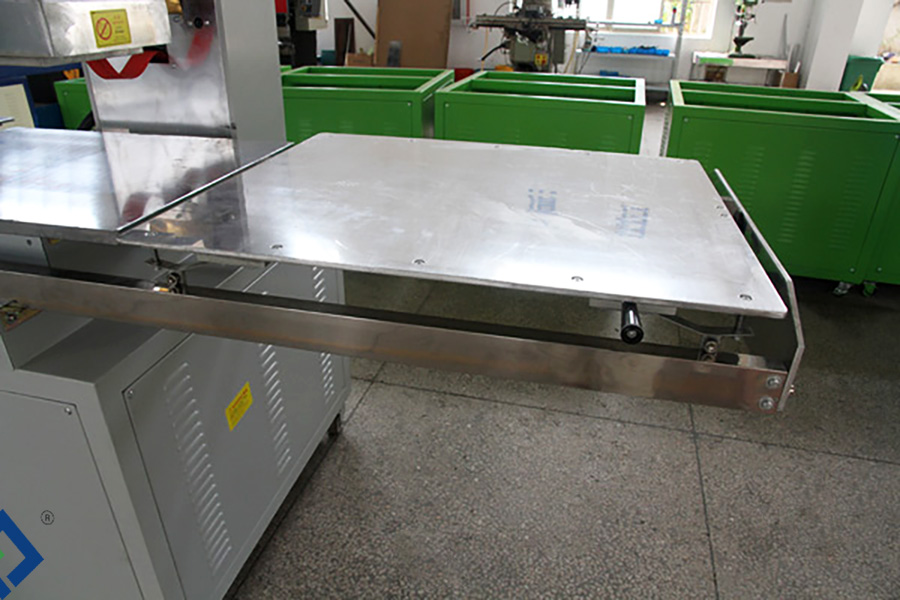

.jpg "manual driven")
|
Model |
PXBP-P01A |
|
Output Power |
5KW |
|
Power Supply |
Customized |
|
Version |
Mechanical Type (M), PLC Type (P), Computer Type (C) |
|
Working Process |
Release material manually--push table manually--press button manually--take out finished products manually (double sides circle ) |
|
Pressure Mode |
Pneumatic≤0.6MPa, adjustable |
|
Production Capacity |
for your reference: 10 secs/pc, 360times/hr, depends on the material processing |
|
Dimension without Slide Tables (L*W*H) |
660*980*1740MM |
|
Dimension with Slide Tables (L*W*H) |
2000*980*1740MM |
|
Upper Electrode |
350*200MM |
|
Bottom Electrode |
600*400MM |
|
Sliding Table |
630*500MM |
|
Packing Dimension (L*W*H) |
760*1080*2050MM |
|
Machine Weight |
350KG |
.jpg)
Model：PXAI-P08P
.jpg)
Model：PXAI-P10P
.jpg)
Model：PXBP-I05A
